Stacking
Optimal from bottom to top
Facts
The quality of the building
Standard of the finishes | High |
Axis grid | 2.4 m; 3 fit-out grids per structural grid 7.20 m |
Building depth | 23.4 m (main building) 22.5 m x 15.3 m (satellites) |
Room height | 2.70 m – 3.10 m (Standard floor) |
Lifts | approx. 11; Including 2 lifts from the underground car park to the lobby |
Floor loading | 5 kN/m² |
Ceiling | Raw ceiling with open installations |
Heating/cooling | Heating and cooling via floor induction units, Recircurculation units, ventilation and air-conditioning systems Planning provides for geothermal energy (heat pump) |
Ventilation | Mechanical ventilation |
Floor | Raised floor (office)/hollow floor (reception lobby) |
IT cabling | Fibre optic cable with transfer point in the floor distribution room |
Sun shading | Sunshades (electric) that can be controlled individually Glare protection on the inside |
Sprinkler system | Entire building |
Building digitalisation | App-based access/room booking and energy management system with many other customisable services |
Lighting | LED system |
Certification | DGNB Gold WiredScore Platinum |
Exposed and striking
The new main entrance area
![](https://aer-muenchen.de/wp-content/uploads/2023/04/036_03_F.jpg)
![](https://aer-muenchen.de/wp-content/uploads/2023/04/036_02_F.jpg)
![](https://aer-muenchen.de/wp-content/uploads/2023/04/0154_SVL_FS9_View02_211007_FINAL.jpg)

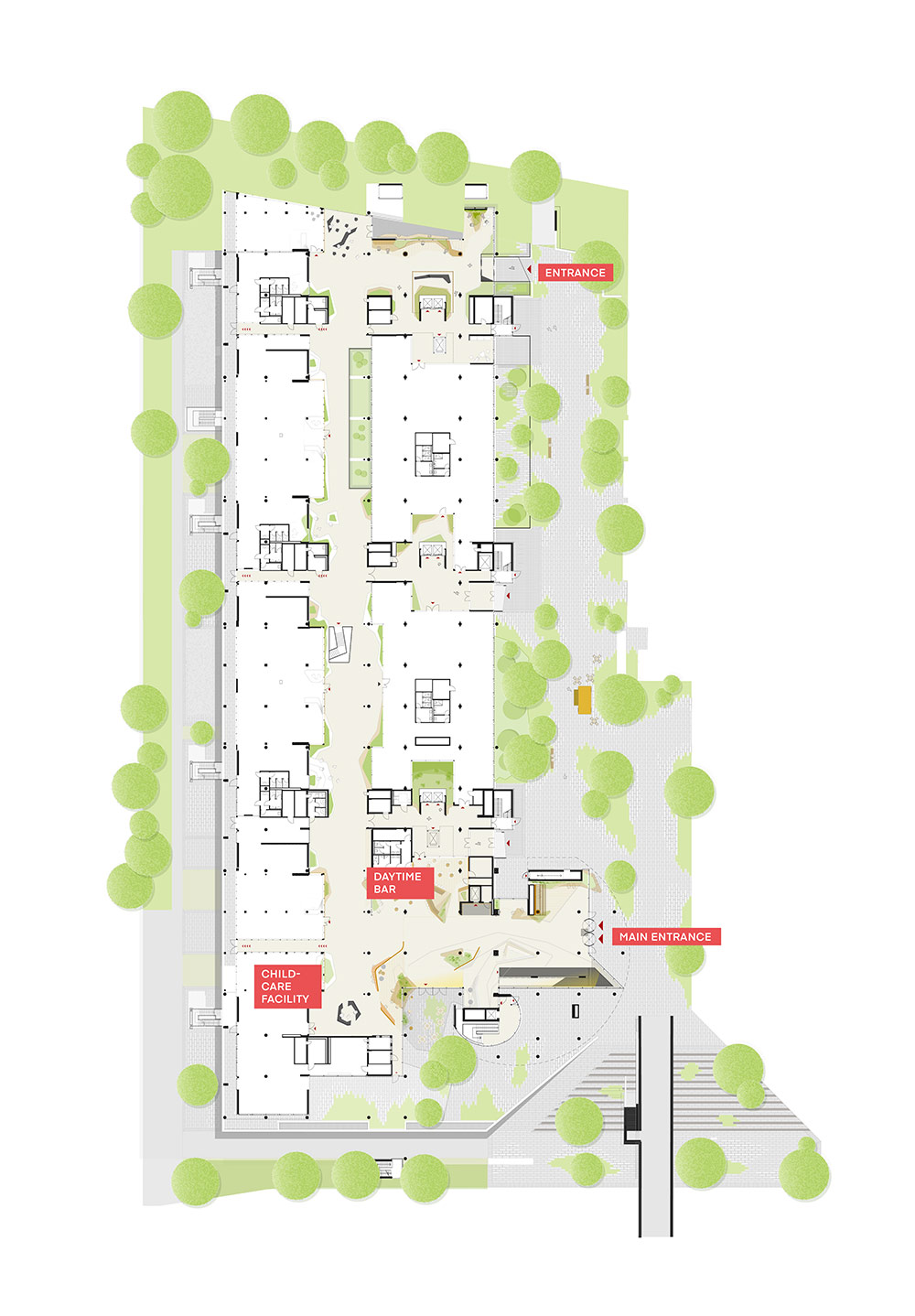

Ground floor
6.367,5 m²
![](https://aer-muenchen.de/wp-content/uploads/2023/05/230530_aer_Grundrisse_Ground-Floor_EN.jpg)
3rd floor
5.537 m²
![](https://aer-muenchen.de/wp-content/uploads/2023/05/20230519-aer_Grundrisse_3OG-1.jpg)
MB A: 505 m²
MB A-1: 540 m²
MB B: 1.036 m²
MB B-1: 535 m²
![](https://aer-muenchen.de/wp-content/uploads/2020/12/FNM_Office_AA_final-1.jpg)

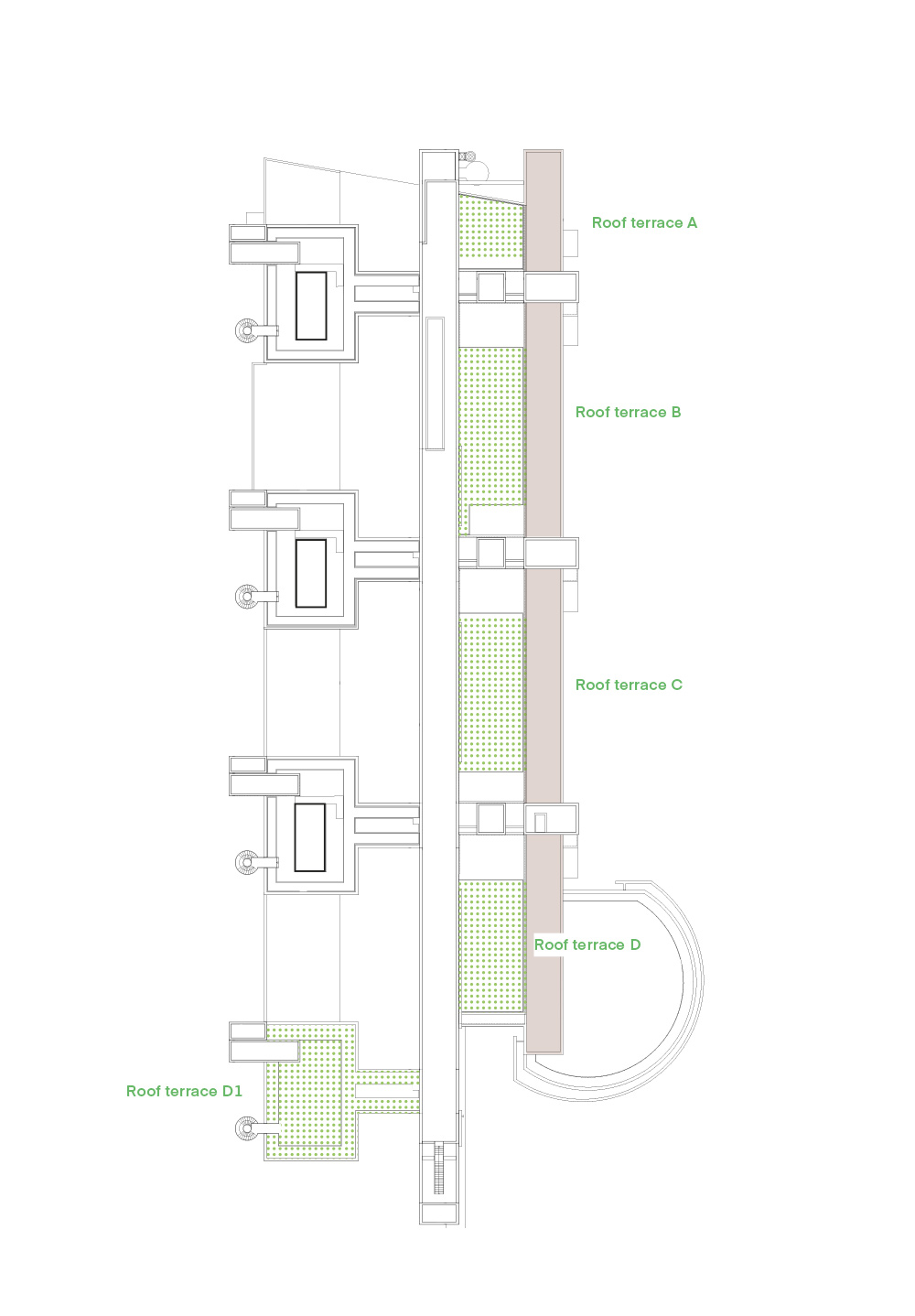

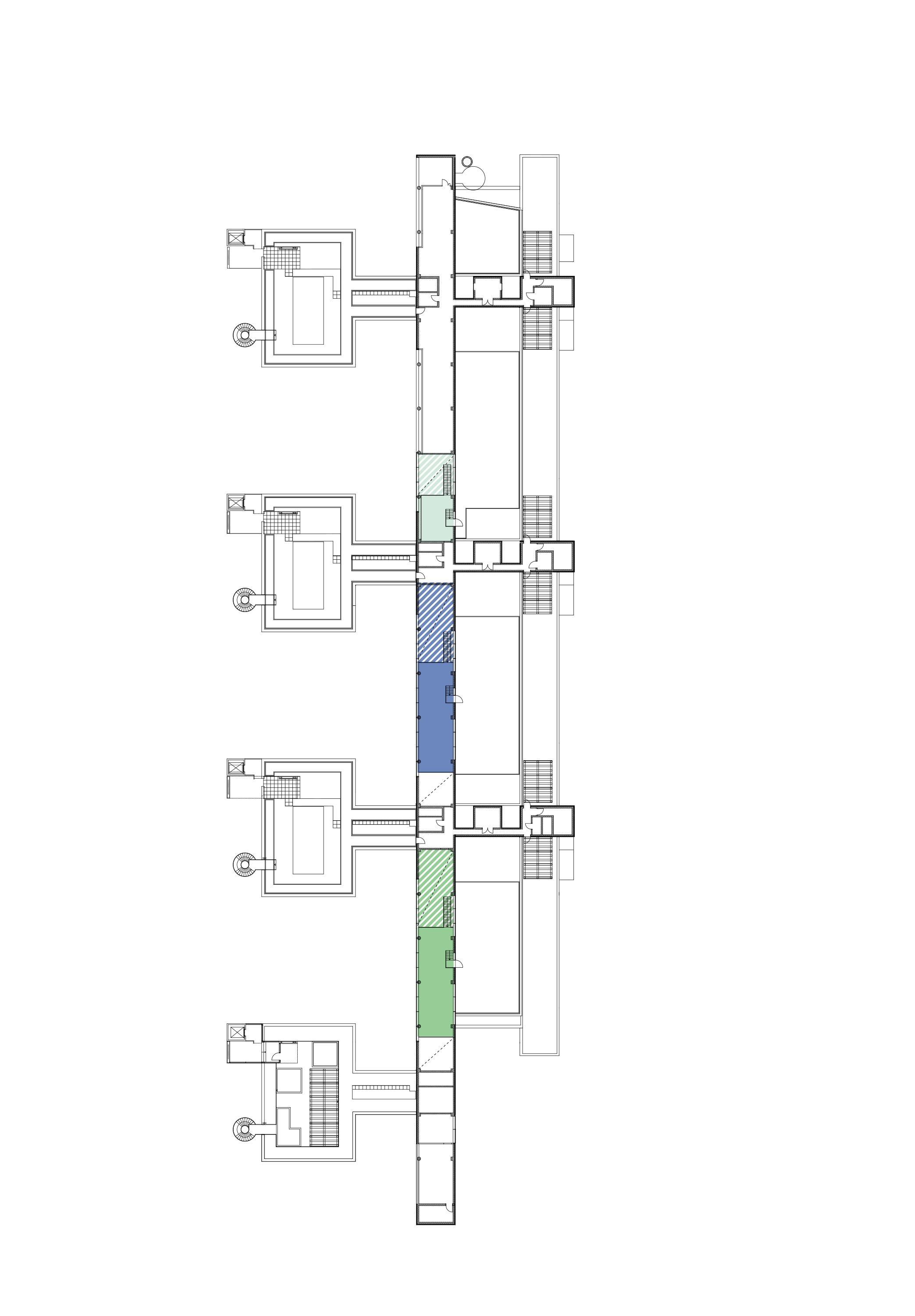

6th floor gallery floor with roof terraces
1.370 m²
![](https://aer-muenchen.de/wp-content/uploads/2023/05/20230519-aer_Grundrisse_6OG.jpg)
MB A: 108 m²
MB B: 411 m²
![](https://aer-muenchen.de/wp-content/uploads/2023/05/20230519-aer_Grundrisse_6OG_Dachterrasse-1.jpg)
